Slitting

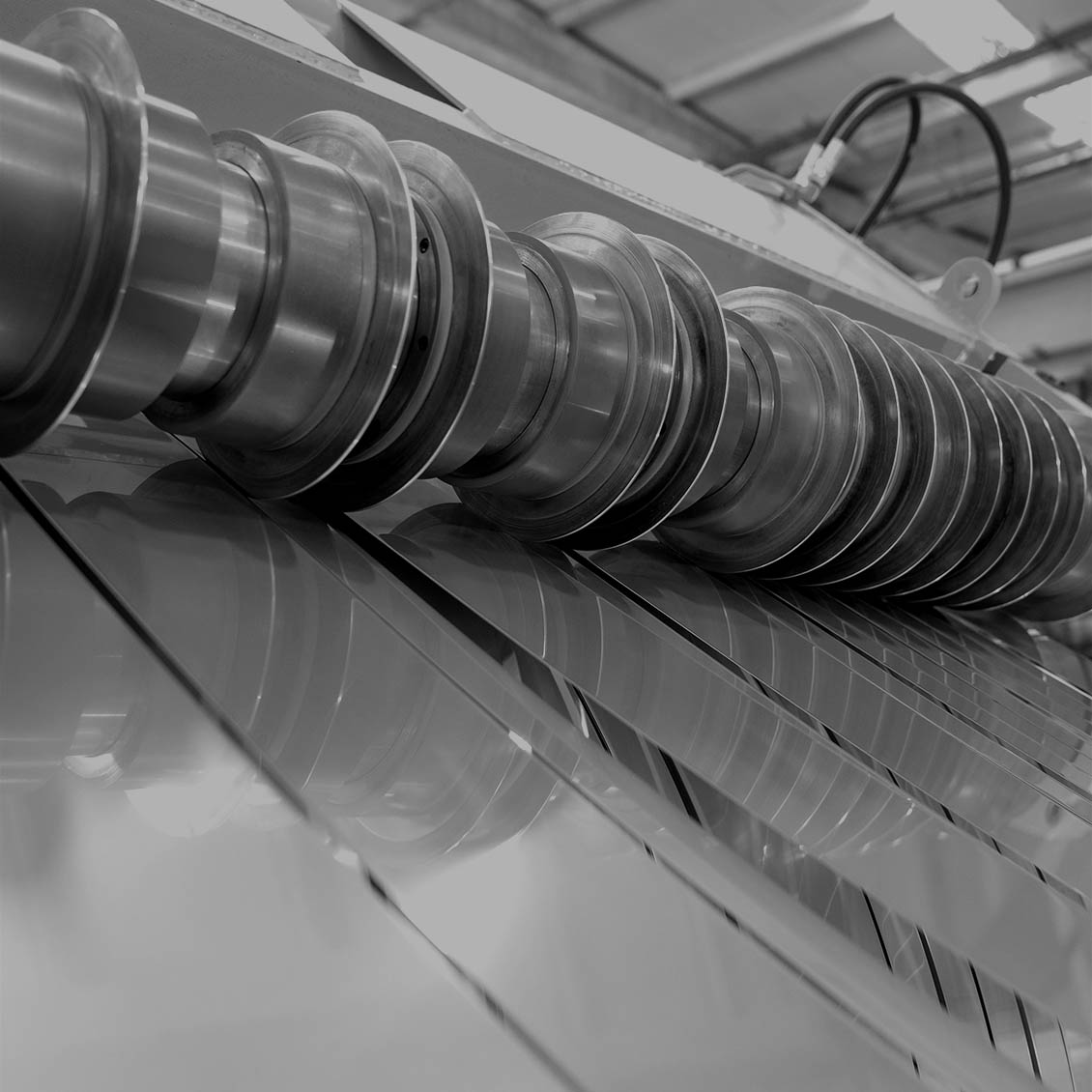

The primary purpose of the slitting line is to slit the material, which is initially on a decoiler mandrel as a coil, into narrower strips using a disk blade system and then rewinding it onto a tensioned winder mandrel. The slitting of the products produced in the slitting line ensures that the slitting process is good, without burrs, telescopy, and that all strips are wound with appropriate and equal winding tension.
Our company has 2 slitting lines within its facilities.
SLT1 MACHINE CAPACITY AND FEASIBILITY | ||||||||||||
Mandrel Diameter (Ø) | Tickness (mm) | Number Of Parts (max) |
Width (mm) | Line Speed (m/min) | Mandrel Tonnage | |||||||
Entry | Exit | Min. | Max. | 0,6 mm – 2 mm | 2 mm – 3mm | Min. | Max. | Min. | Max. | Entry (max) | Exit (max) | |
Edge Cutting | 508 – 610 | 508 – 610 | 0,35 | 3,00 | 500 | 1300 | 1 | 300 | 30 | 30 | ||
Multiple Slitting | 508 – 610 | 508 – 610 | 0,60 | 3,00 | 15 | 8 | 30 | 0 | 1 | 300 | 30 | 30 |
SLT2 MACHINE CAPACITY AND FEASIBILITY | ||||||||||||
Mandrel Diameter (Ø) | Tickness (mm) | Number Of Parts (max) |
Width (mm) | Line Speed (m/min) | Mandrel Tonnage | |||||||
Entry | Exit | Min. | Max. | 0,6 mm – 2 mm | 2 mm – 3mm | Min. | Max. | Max. | Max. | Entry (max) | Exit (max) | |
Edge Cutting | 508 – 610 | 508 – 610 | 0,3 | 3,00 | 300 ~ 500 | 1500 | 1 | 150 | 25 | 25 | ||
Multiple Slitting | 508 – 610 | 508 – 610 | 0,3 | 3,00 | 16 | 8 | 30 | 1 | 150 | 25 | 25 |
